Glass Type
Clear Toughened Safety Glass
Thickness
10 mm
Panel Size
2100 mm × 150 - 800mm
Glass Configuration
2C2H (2 Cut-outs for Hinges / 2 Holes for Brackets)
Edge Finish
Flat Polished Edges (All Sides)
Corner Finish
Safety Arrised / Small Radius Corners
Processing Details
2 × hinge cut-outs
2 x holes
Cut-out position and dimensions as per hinge hardware specification
Tempered after all machining processes
Standards
Manufactured in accordance with:
AS 2208 – Safety Glazing Materials in Buildings
AS 1288 – Glass in Buildings Selection & Installation
Application

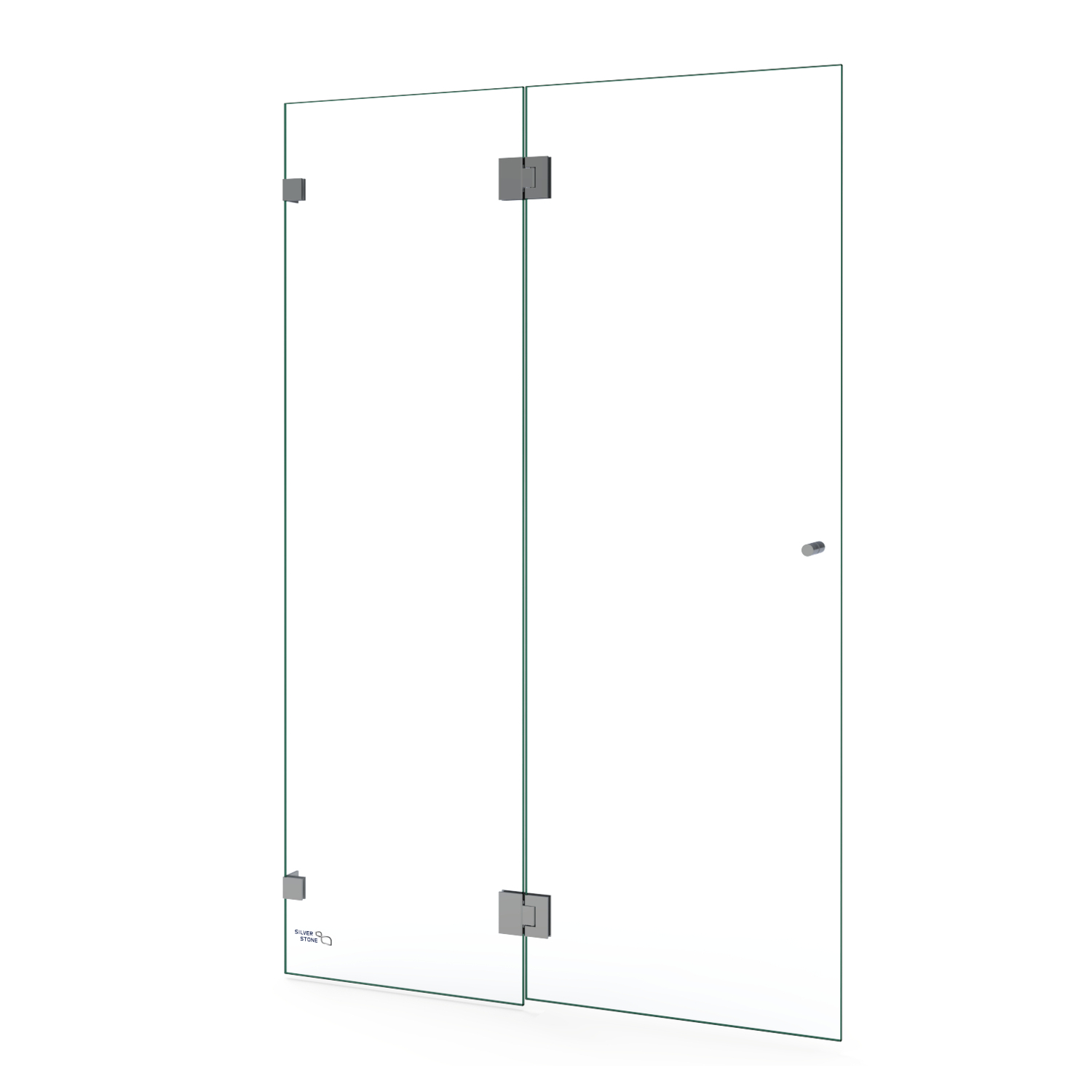

Suitable for frameless glass door or gate systems using patch hinges or glass-to-wall hinges.
