SH-135A Series

Solid Brass Adjustable 135° Glass-to-Glass Shower Screen Hinge

The SH-135A Series is a premium solid brass shower screen hinge designed for glass-to-glass installations in frameless shower enclosures. Featuring a precise ±10° adjustment capability, it allows installers to easily correct minor wall or glass alignment variations, ensuring accurate door positioning and smooth operation.

Engineered for durability and reliability, the hinge supports doors up to 35kg (using two hinges) and a maximum width of 750mm. The integrated spring mechanism enables automatic self-closing from approximately 30°, while allowing the door to open both inward and outward for convenient access.

Manufactured from high-quality solid brass and available in a wide range of architectural finishes, the SH-180A Series combines strength, functionality, and aesthetic flexibility for modern bathroom applications.

Specifications

Glass Type: Tempered Glass

Glass Thickness: Suitable for 10mm glass

Maximum Door Weight: 35kg (per 2 hinges)

Maximum Door Width: 750mm

Opening Direction: Inward & Outward

Maximum Opening Angle: 135°

Self-Closing Range: From 30°

Adjustment: ±10°

Warranty: 7 Years

Available Finishes

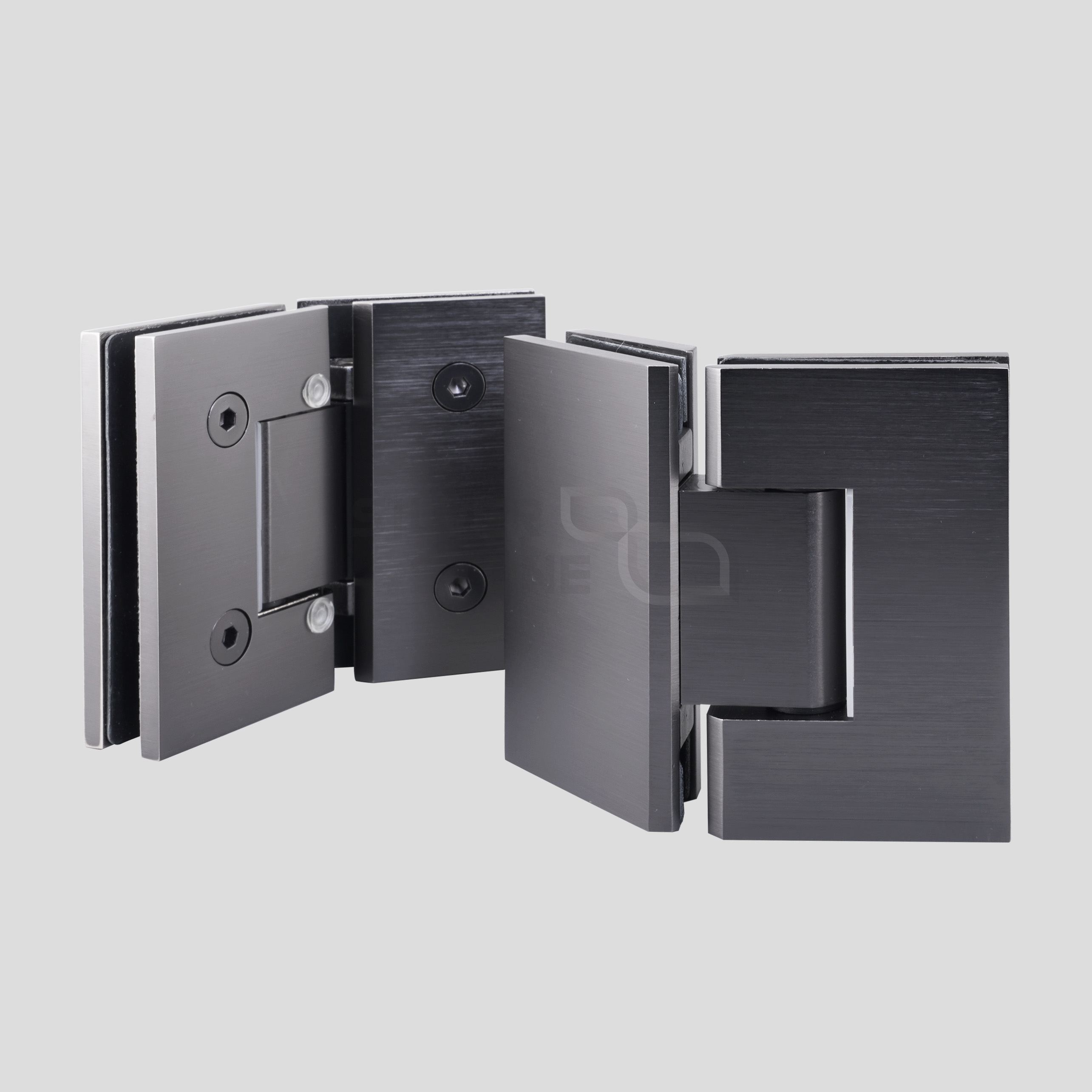

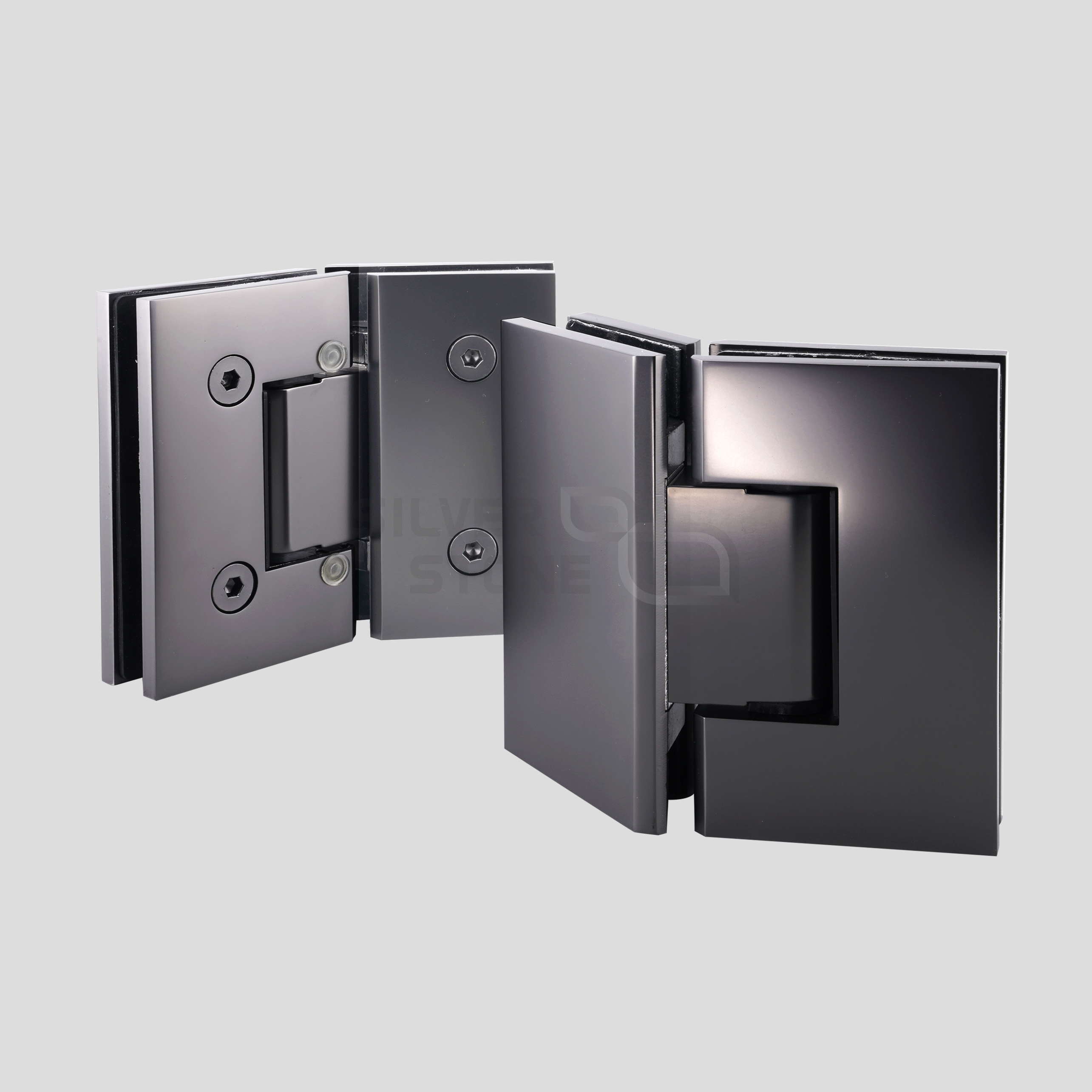

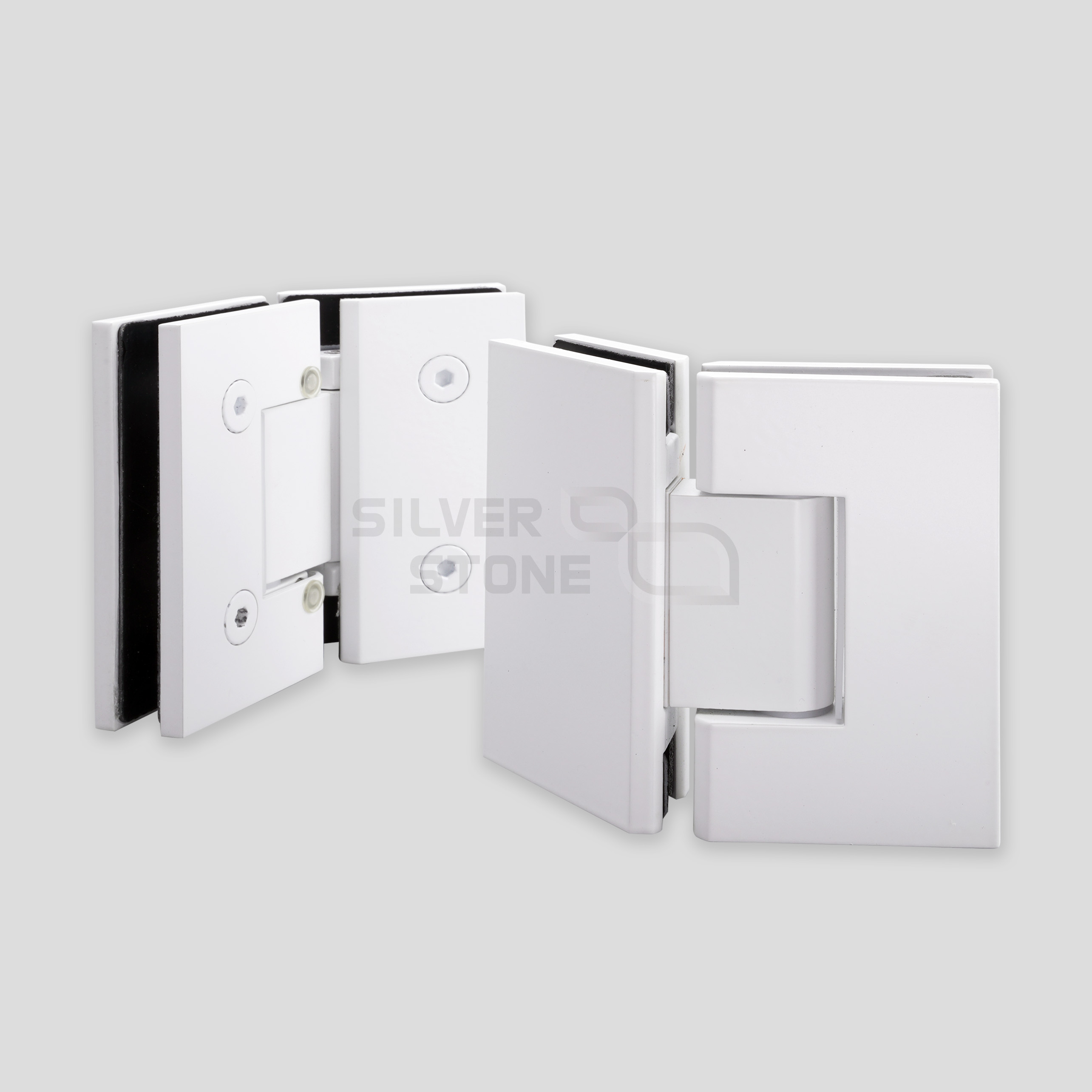

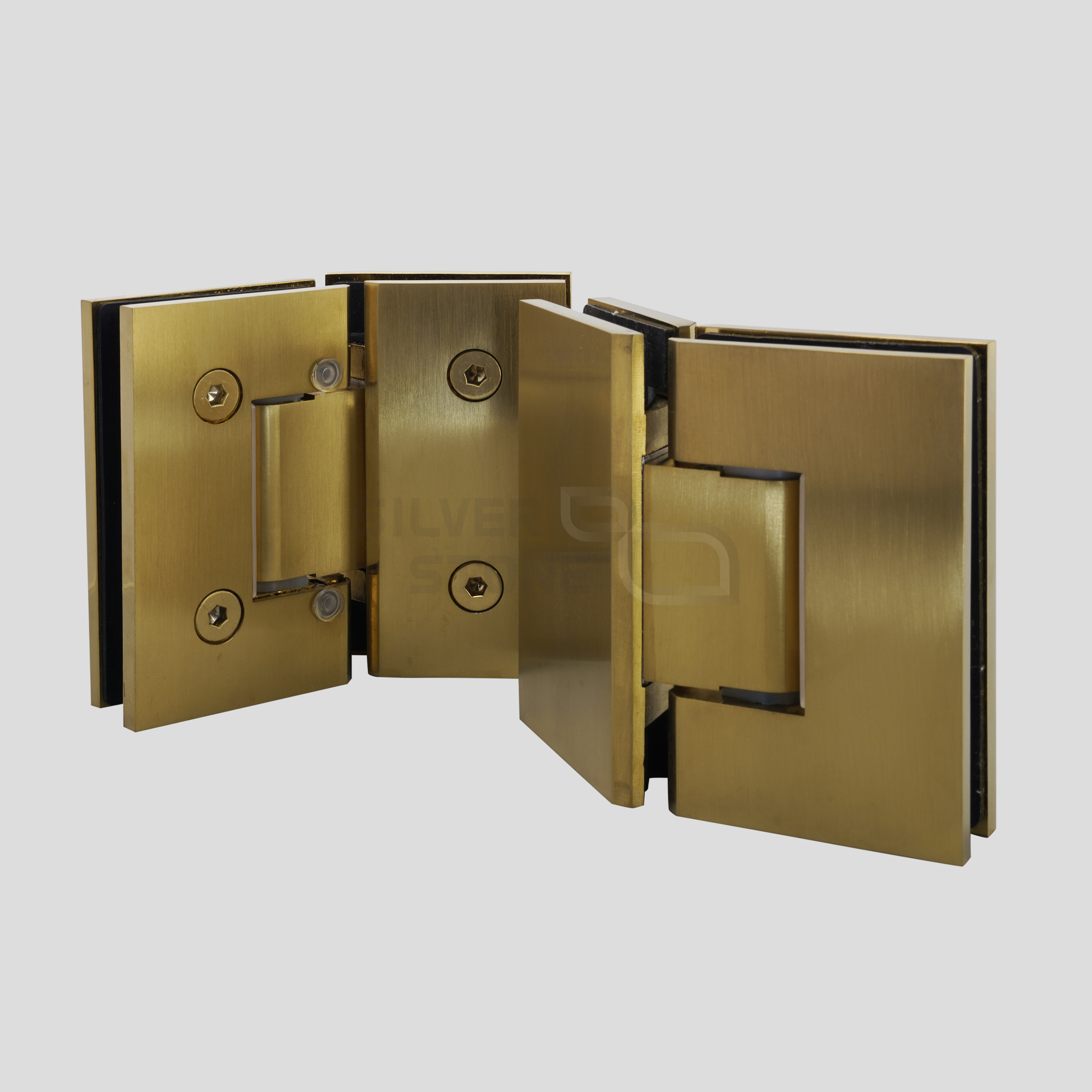

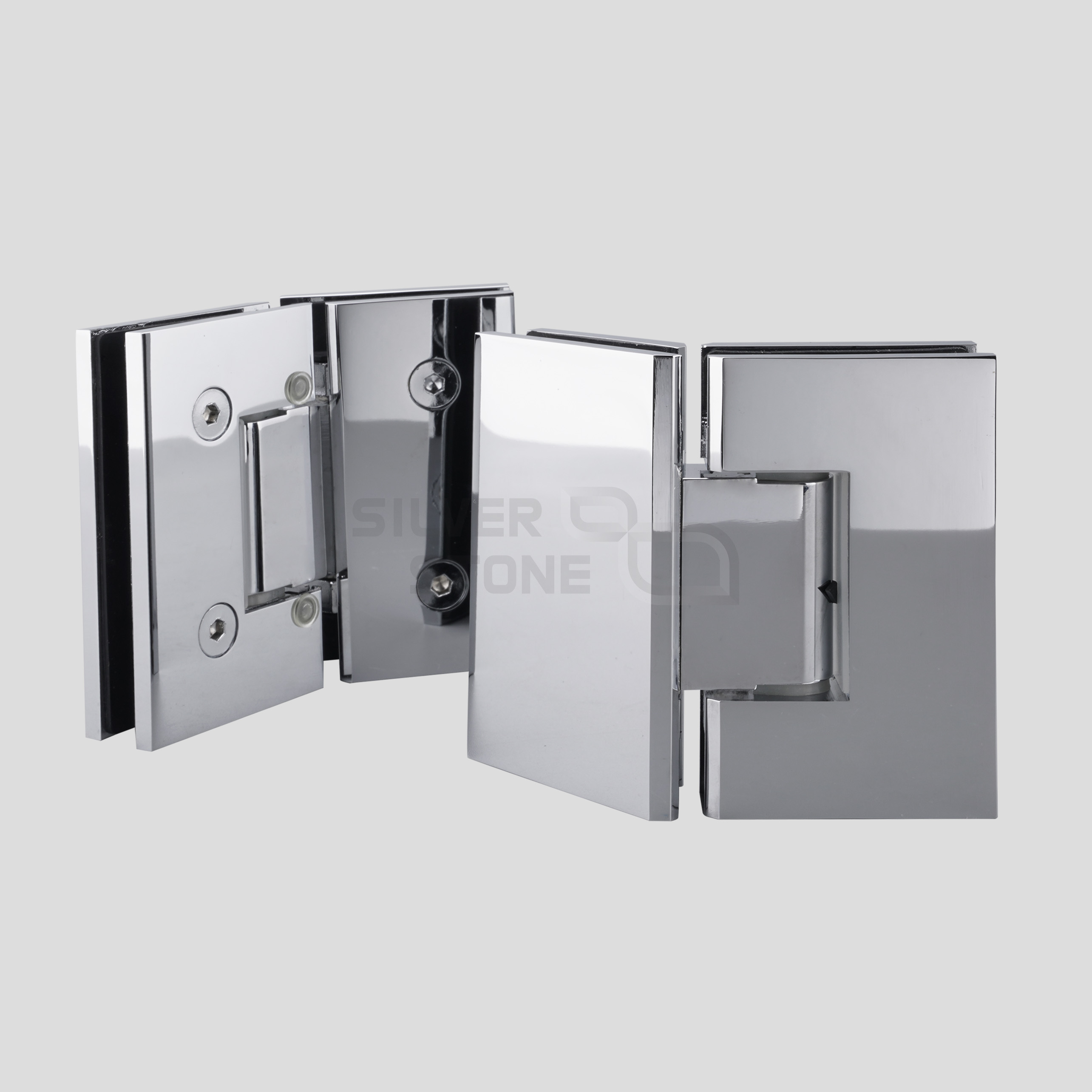

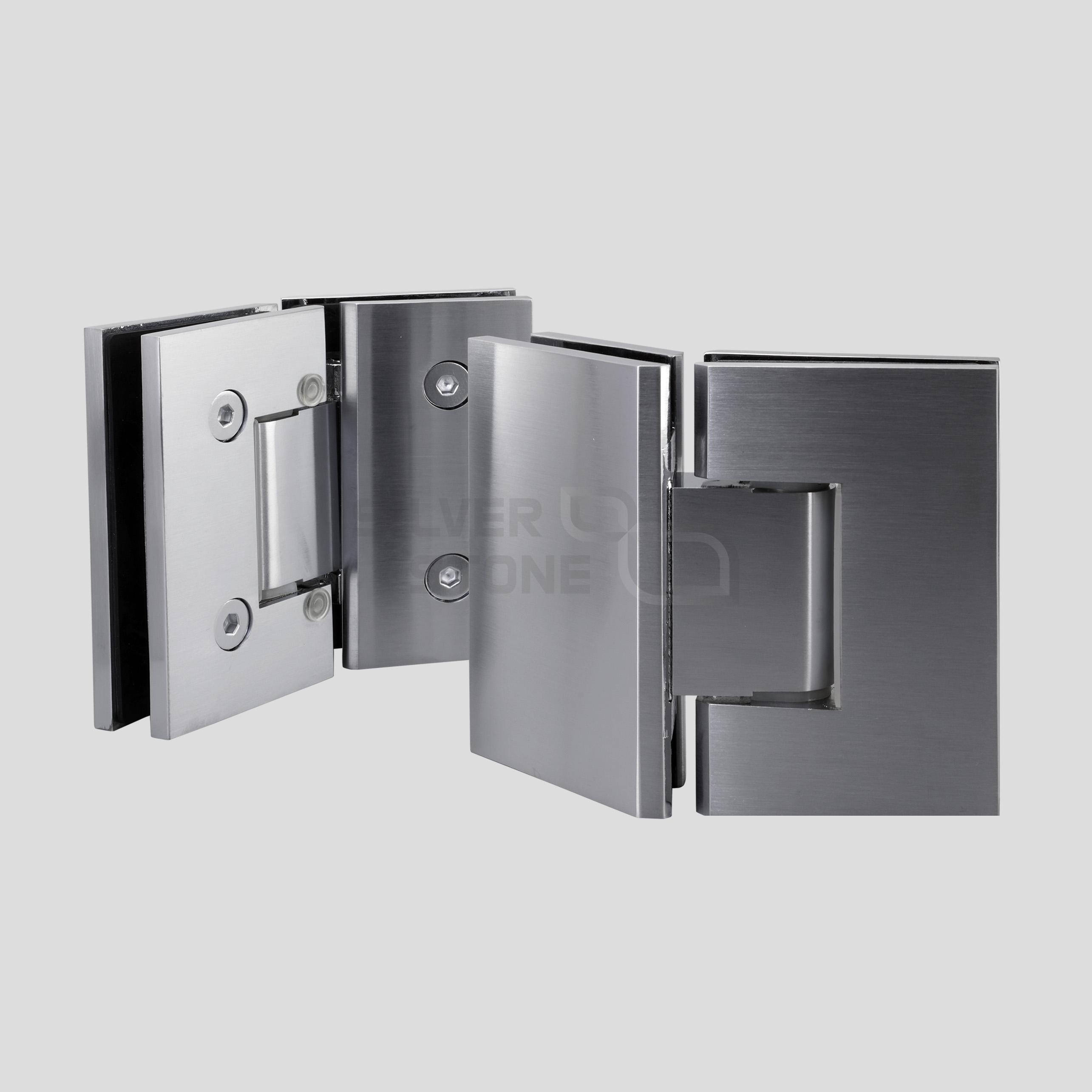

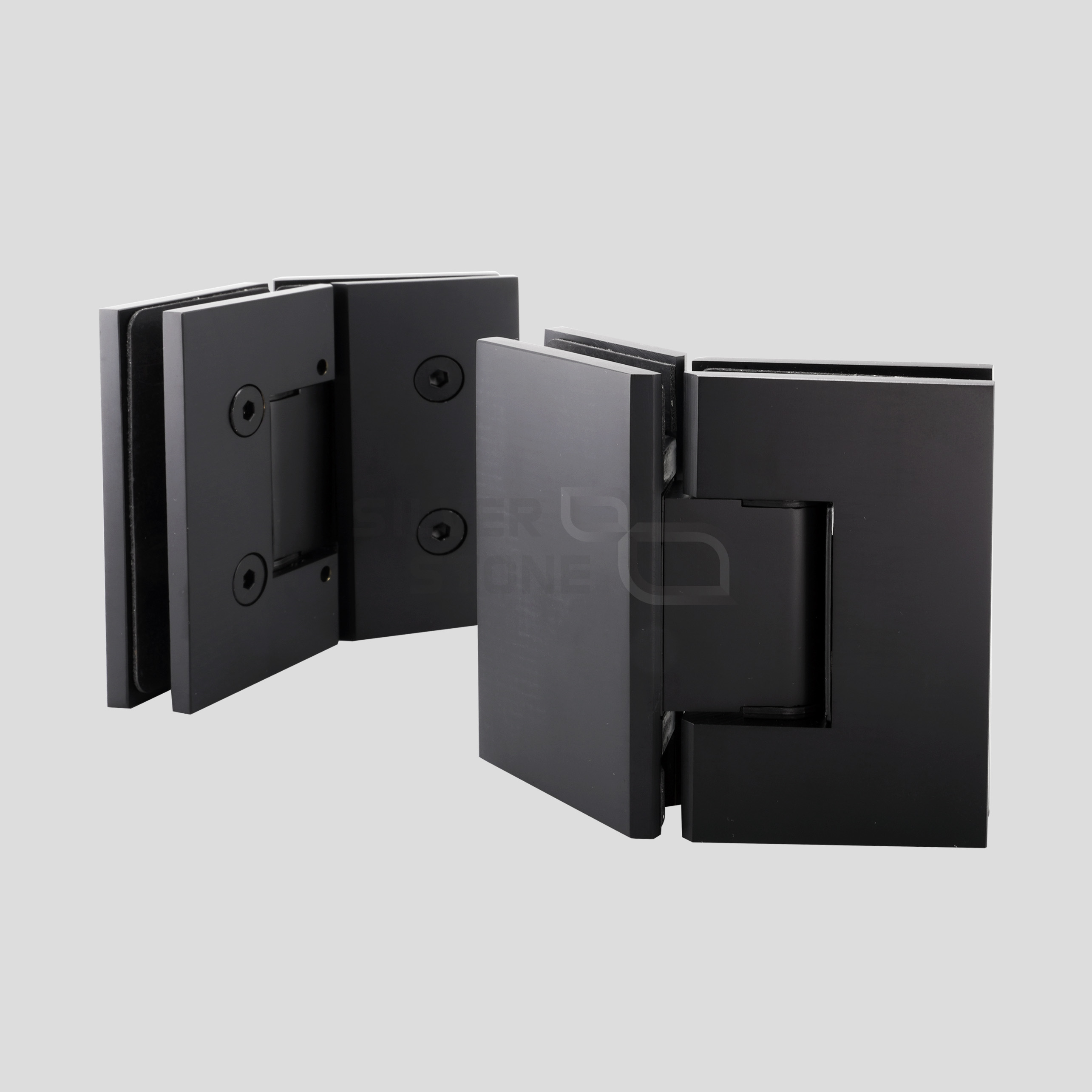

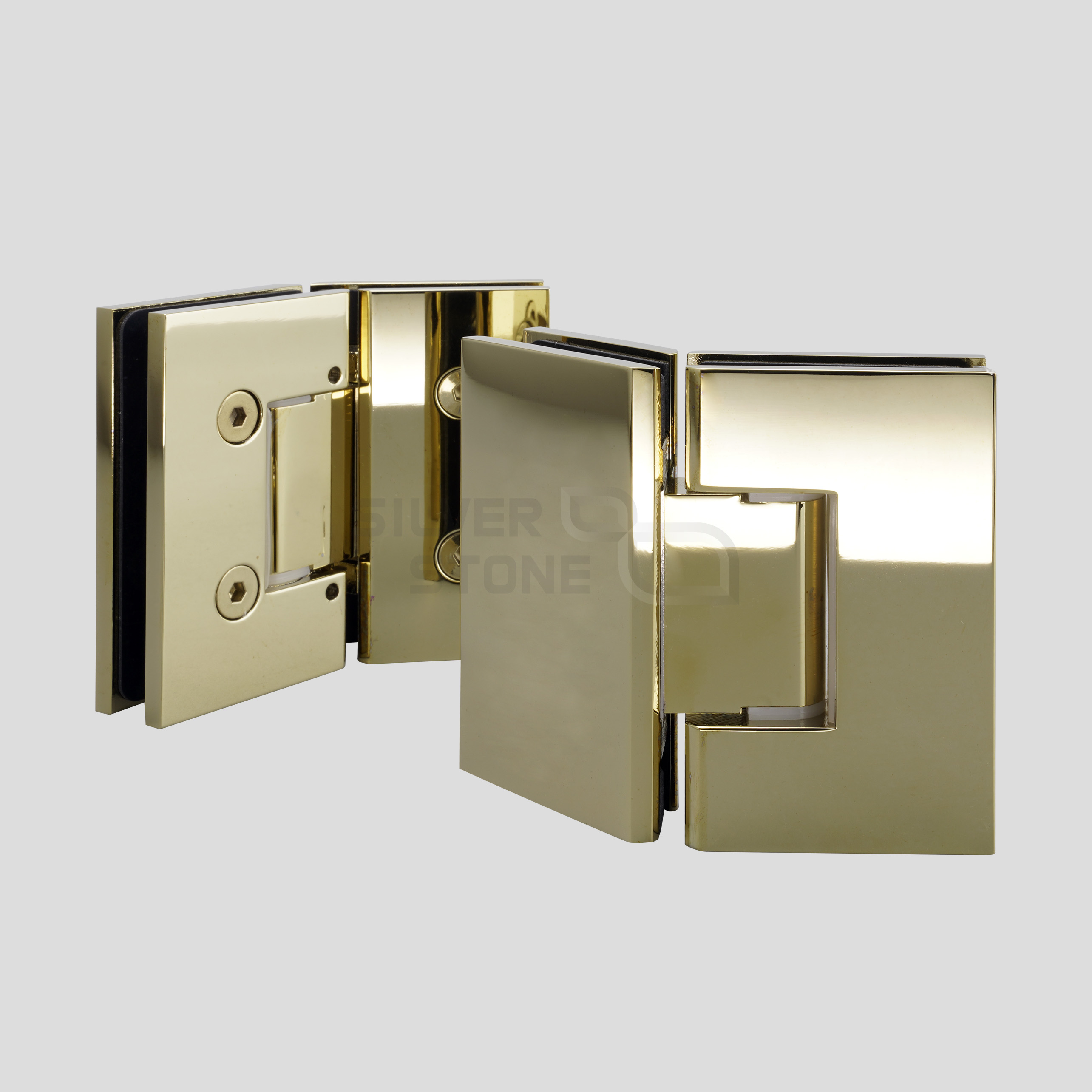

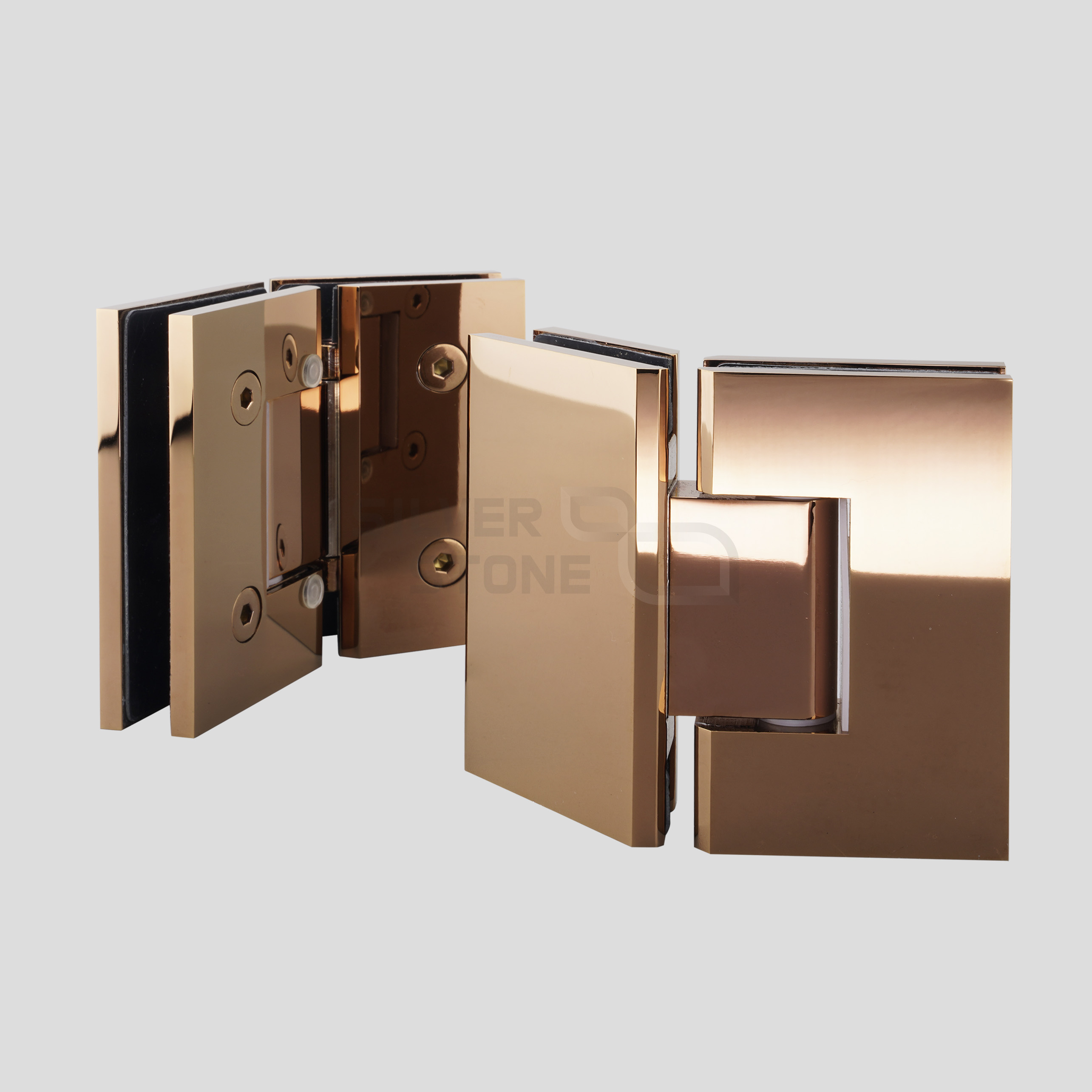

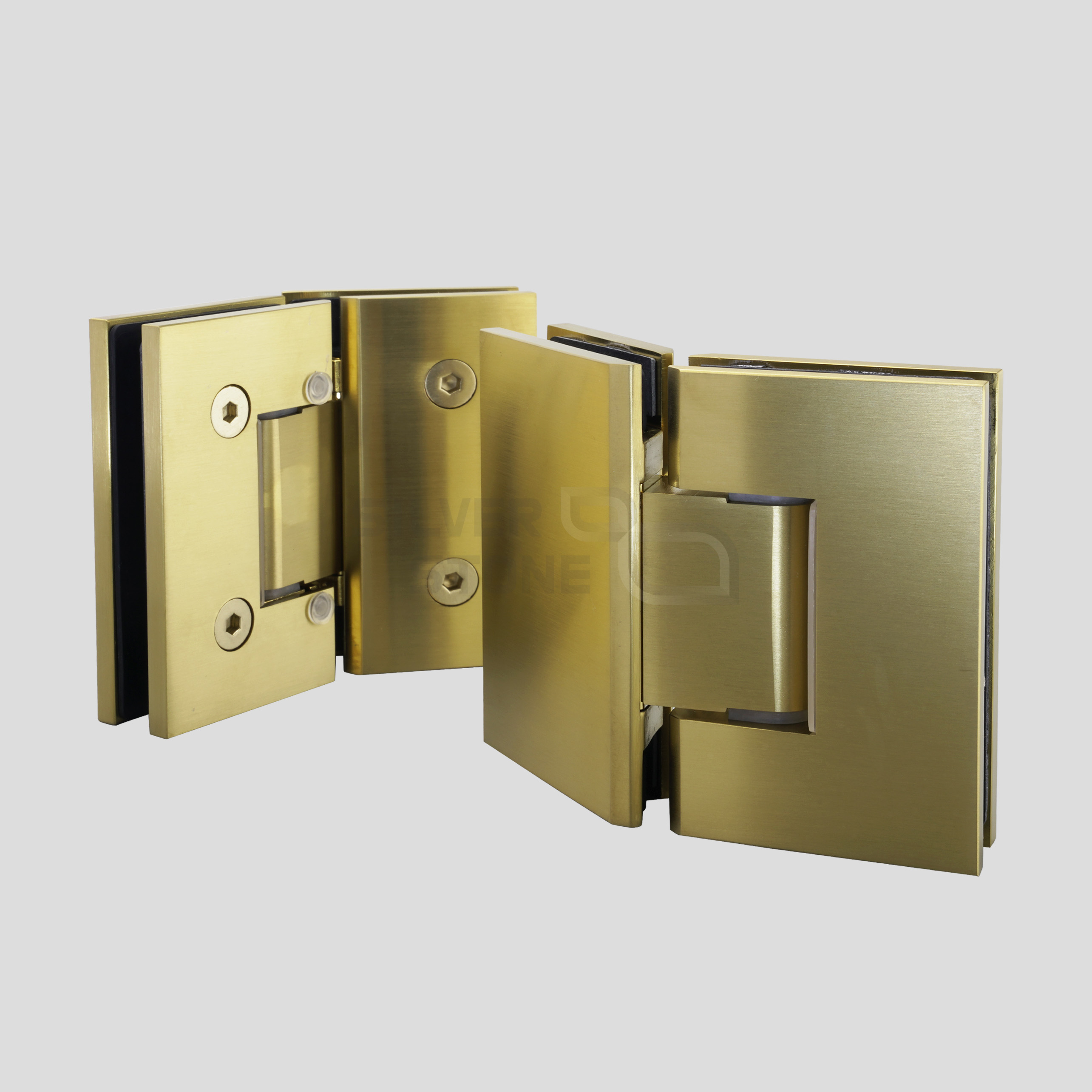

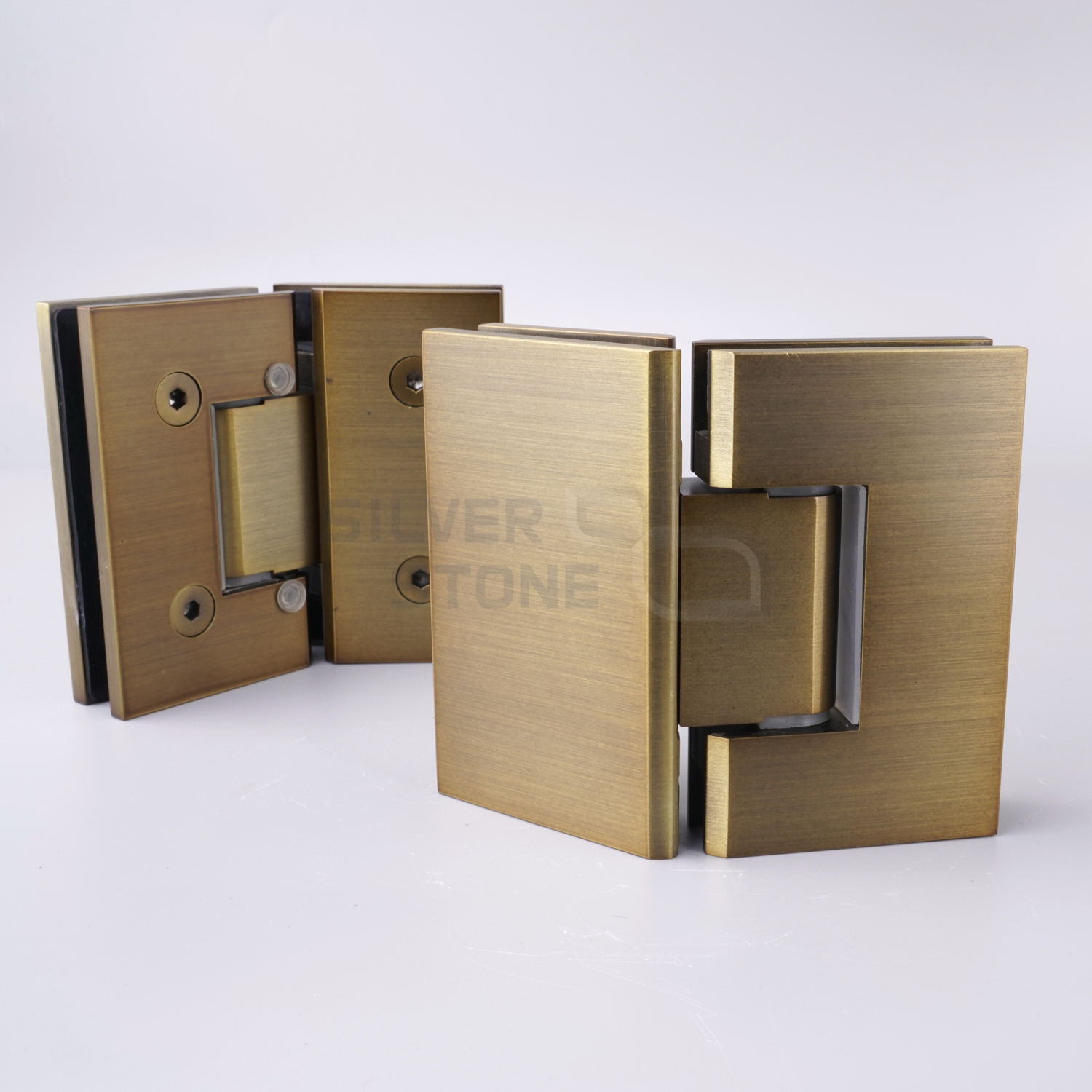

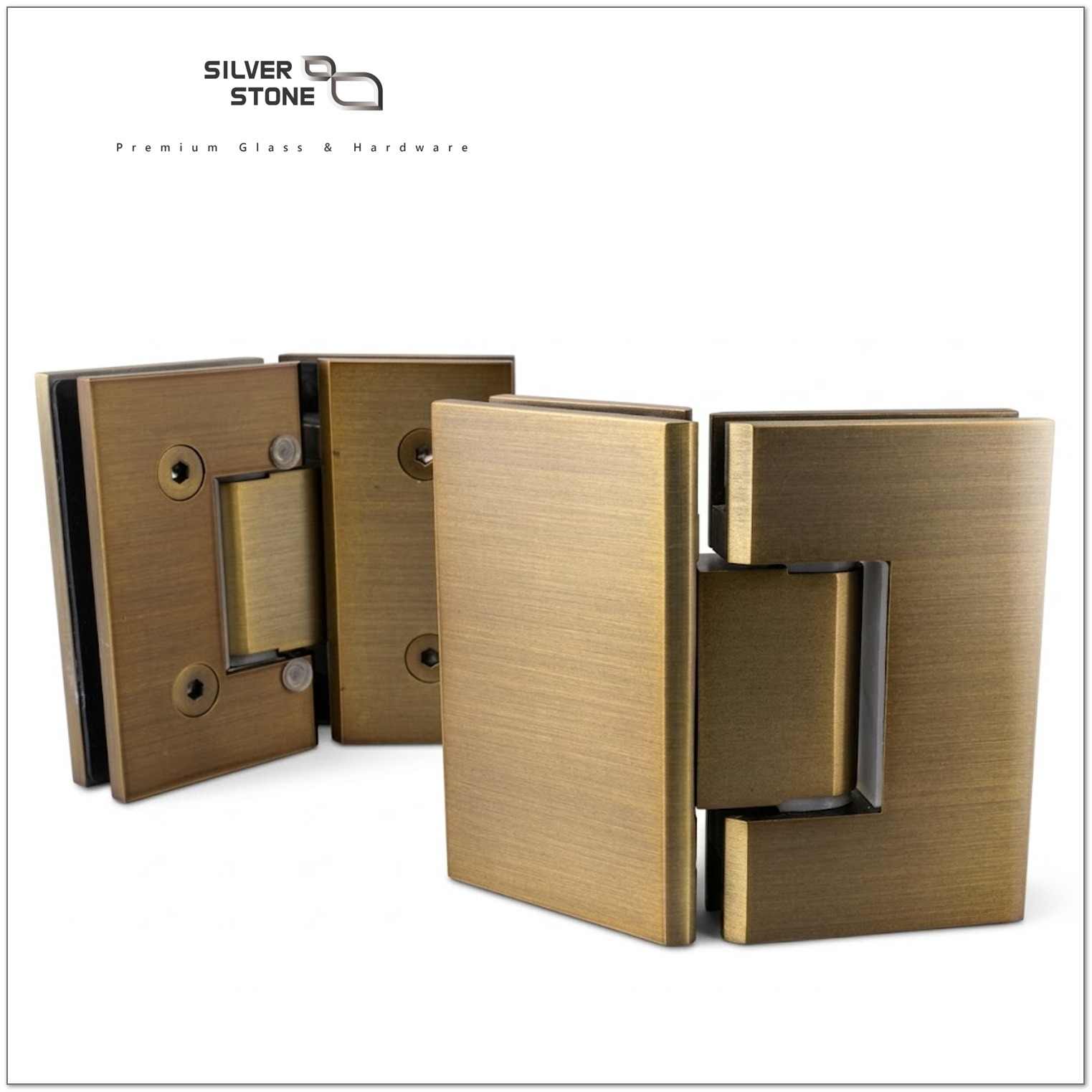

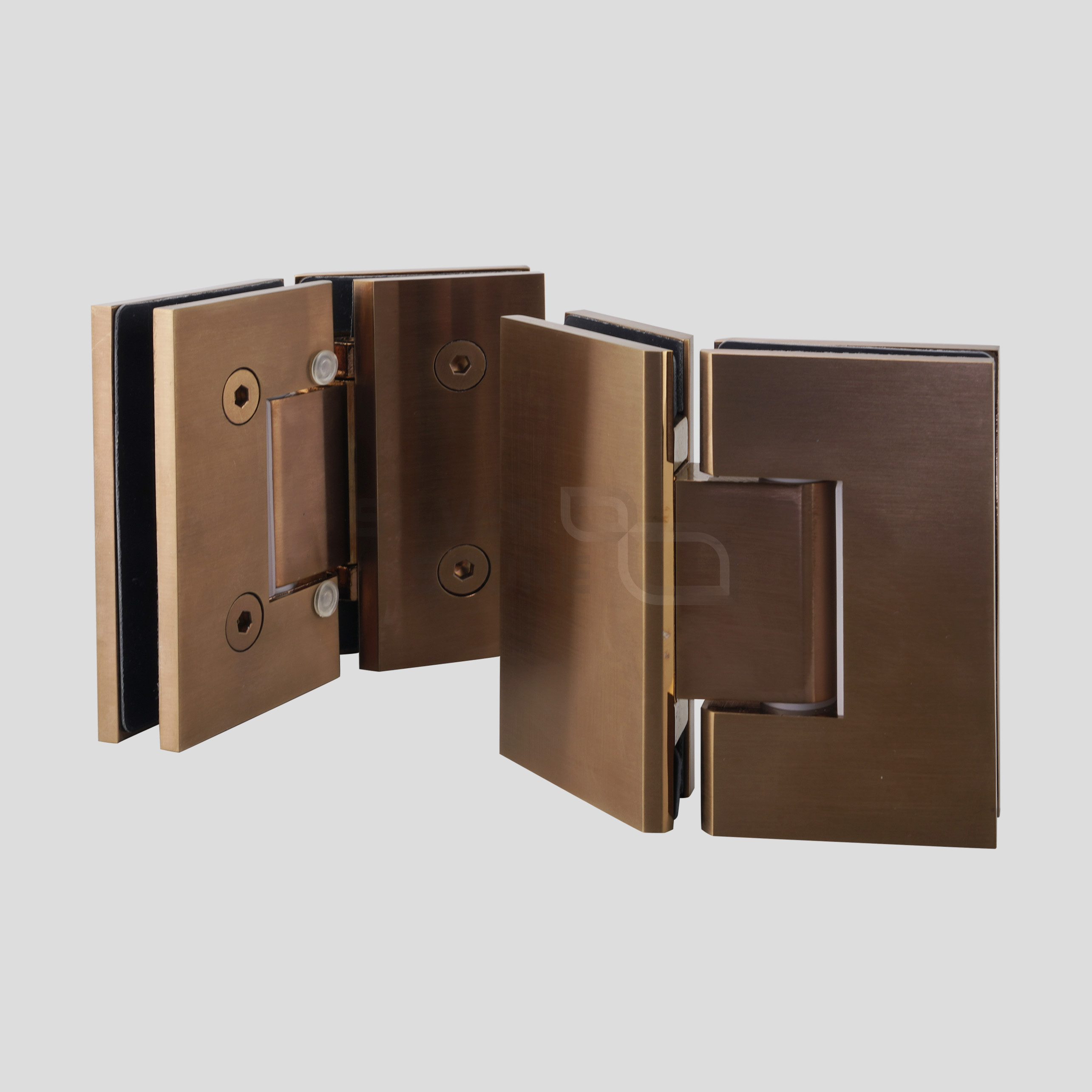

Polish Chrome / Polish Gold / Matte Black / Matte White / Brush Nickel / Brush Brass / Satin Gold / Satin Chrome / Rose Gold / Brush Rose Gold / Gun Metal / Brush Gun Metal / Antique Brass

Price: Per Pair
