PF-HY100 Series

Hydraulic Patch Closer — 90° Hold Open

Medium Duty — Internal Use

2-Speed Adjustable Closing

Suitable Glass Thickness: 8–12mm

Max Door Width: 1000mm
Max Door Weight: 100kg

Maximum Opening: 150°
Controlled Closing: 135°

Durability: Tested to 500,000 Cycles

Ambient Temperature: −20°C to +50°C

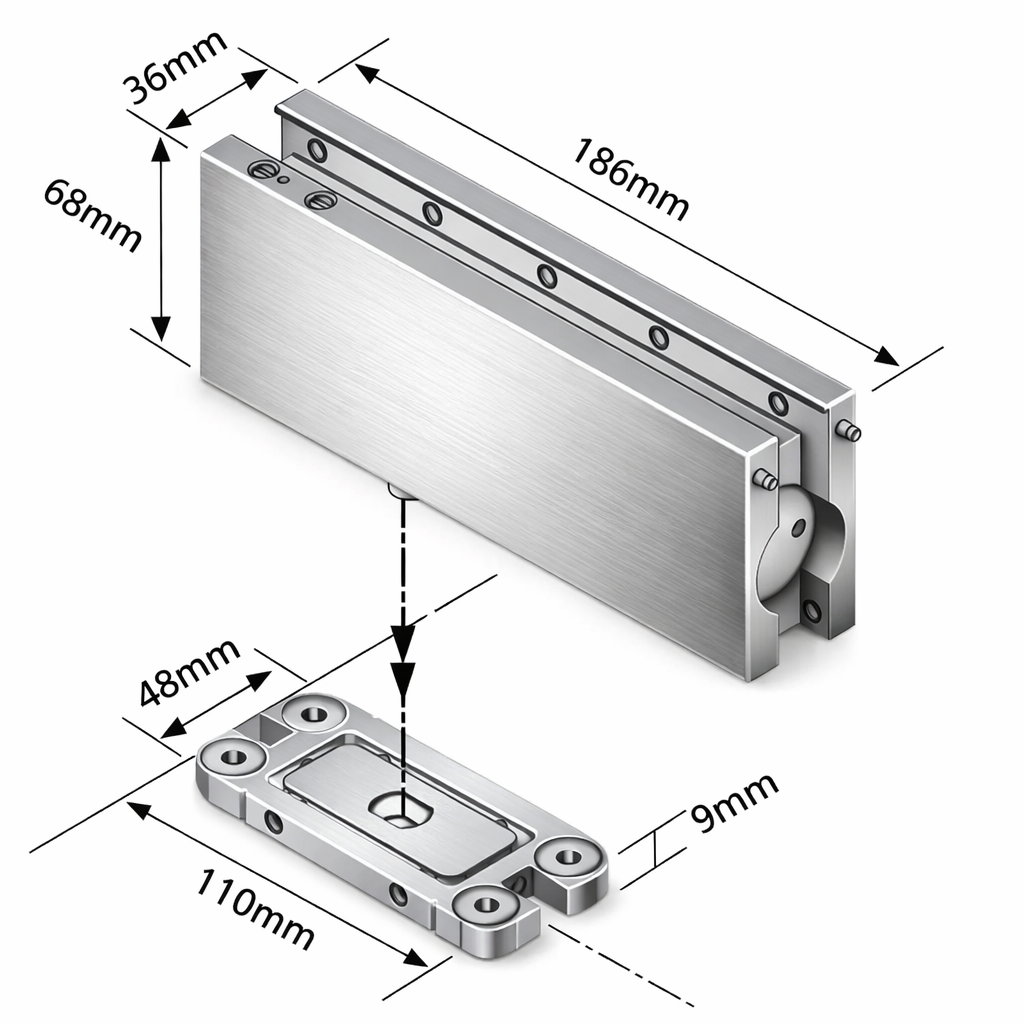

Installation:
No digging or floor cutting required. Quick installation with 4 fasteners.

Adjustable Base Seat:
• ±3mm front / back adjustment
• ±3mm left / right adjustment
• ±4° alignment adjustment

Available Finish:

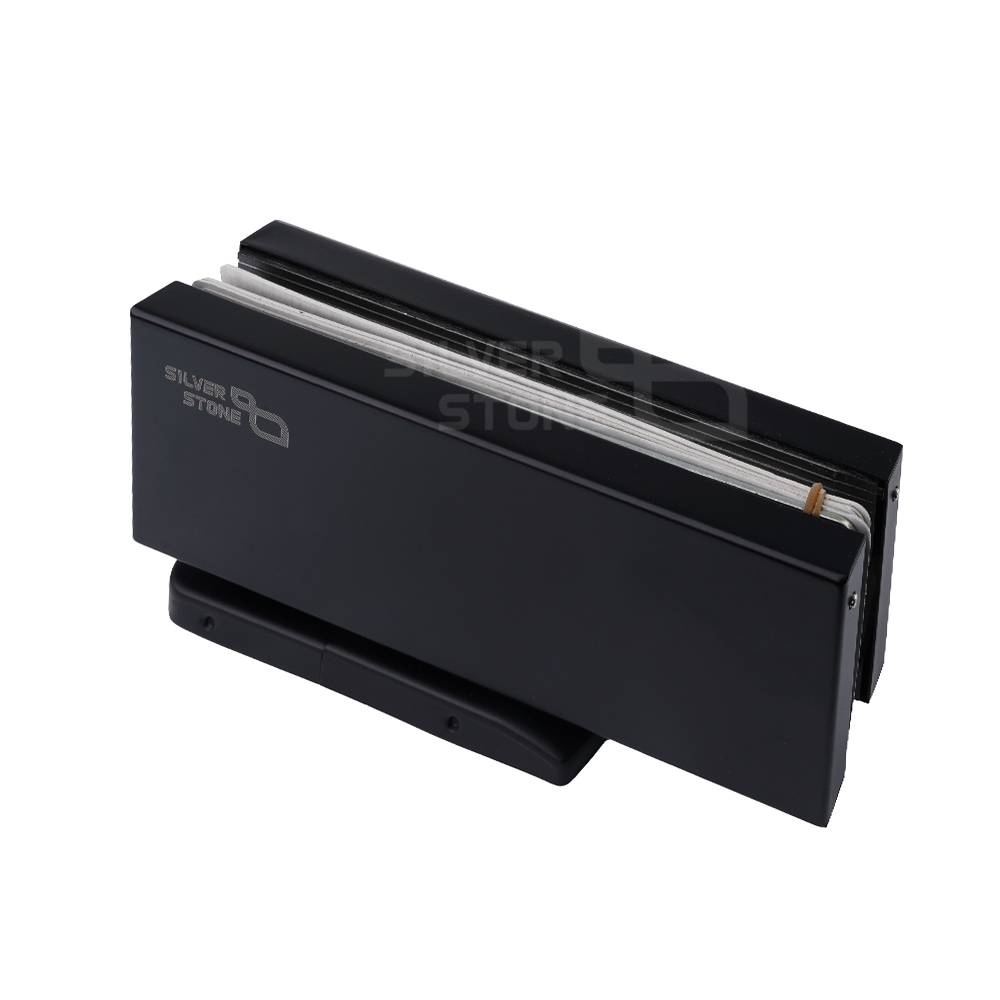

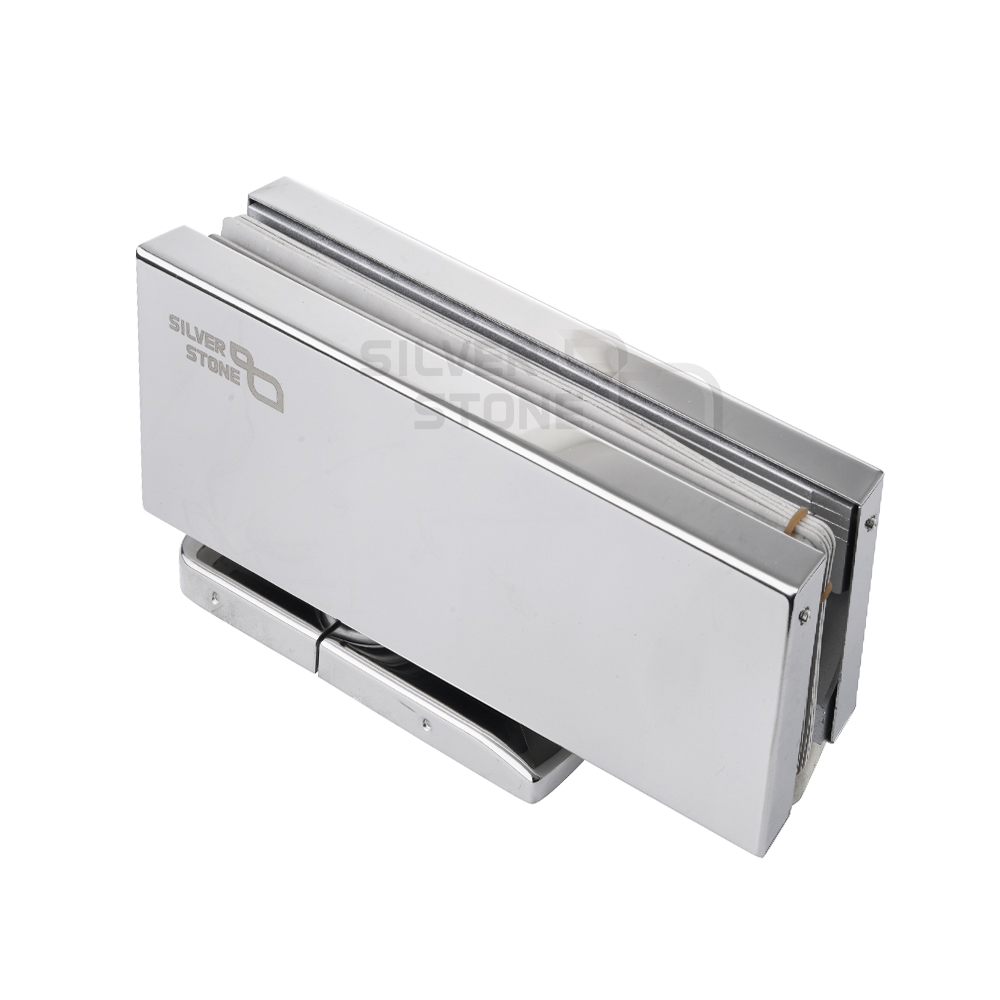

Polish (PSS) / Satin (SSS) / Matte Black
